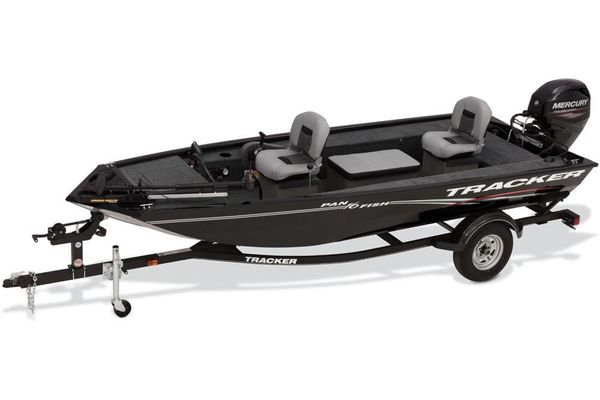

2018 Tracker Panfish 16

• Length:16' 2"
• Beam: 70"
• Bottom width: 48"
• Max. recommended HP: 40 HP
• Fuel capacity: 11.4 gal.
• Max. person capacity: 4 persons
• Max. person weight: 465 lbs.
• Max. weight capacity : 880 lbs.
• Interior depth: 15.5"
• Transom height: 21.4"
• Deadrise at transom: 6 degrees
• Deadrise at bow: 13 degrees
• Hull material: 0.09 5052 marine alloy
• Average weight: 766 lbs.
• Average package weight: 1495 lbs.
• Package height: 4' 1"
• Package width: 5' 11"
• Towing length: 21' 2"
• Storage length (w/outboard trimmed down): 20' 2"

Comfort, Convenience & Peace of Mind

• Backed by the TRACKER® Promise—the best factory warranty in aluminum boats
• Limited lifetime hull warranty
• Flotation meets or exceeds NMMA® & U.S. Coast Guard Requirements
• Easy-fill EPA-compliant fuel tank system
• Bow & Stern Eyes
• 4 cleats
• 2 battery trays
• 3 drink holders
• Motor-stop safety lanyard
• Fire extinguisher
• Horn
• Paddle

Console

• Lowrance® HOOK-3x color fishfinder w/transducer
• Stick steering for precise maneuverability
• Mercury® control box
• Fuse-protected control center w/horn, navigation lights, bilge, aerator, 12V outlet & fuel gauge

Construction & Exterior

• NEW Diamond Coat™ finish w/industry-exclusive, baked-on powder coat & clearcoat for long-lasting durability, color & good looks
• Rugged, all-welded, 1-piece aluminum hull w/pressed-in strakes & chines for structural strength & handling
• Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull
• Welded-In Longitudinal Stringer System For Full-Length Support Of The Running Surface
• Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
• NEW 3" (7.62 cm), heavy-duty extruded 1-piece gunnel for structural strength & rigidity
• Pressure-treated floor & decks w/limited lifetime warranty
• Flush-mount, carpeted, all-aluminum compartment lids for structural rigidity, tight fit & long-term durability
• Red & Black graphic scheme

Electrical

• 500 GPH (1,893 LPH) Bilge Pump
• Bow courtesy light built into navigation light
• Stowable navigation lights
• Interstate® batteries: 1 cranking & 1 trolling
• 12V trolling motor harness & receptacle
• Wiring system wrapped in abrasion-resistant protective conduit

Interior

• 100% composite fishing seats w/contoured, pinchless hinges, snap-off cushions
• 2 folding fishing chairs w/molded frames for close-to-the-action floor-level fishing
• Seating for 2 on midship cushion-top livewell
• Deep, molded dry storage boxes below each seat
• 2 top-loading carpeted rod/gear lockers—7' (2.1 m) port, 7' (2.1 m) starboard
• NEW exclusive VERSATRACK® accessory-mounting channel in gunnels
• 16-oz. (.45 kg) marine-grade, fishing-friendly, Midnight Star cut-pile carpet throughout

Livewell Systems

• Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
• 14-gal. (53 L) aerated livewell w/cushion-top seat
• Removable bait bucket
• 500 GPH (1,893 LPH) aerator/fill pump

Performance

• Pressed-in keel & strakes for optimal performance
• Factory-matched, performance-tested aluminum propeller

Trailer

• Custom-fit, single-axle trailer w/powder-coat finish & GALVASHIELD® Impact corrosion & chip protection for improved durability
• Silver Metallic powder-coat wheels w/13" (33.02 cm) radial tires
• Super Lube Hubs For Quick & Complete Hub Lubrication
• Outboard Motor Support To Reduce Hull & Transom Stress While Towing
• Heavy-Duty Upright Load Guides For Easy, Centered Loading
• Carpeted Bunks To Protect Hull
• Safety Cables

Trolling Motor

• Minn Kota® Edge 12V, 45-lb. (20.4 kg) thrust, 45" (1.1 m) shaft, foot-control trolling motor
• Thru-bolted trolling motor mount for durability
