Sun Tracker Fishin' Barge 22 DLX - main image

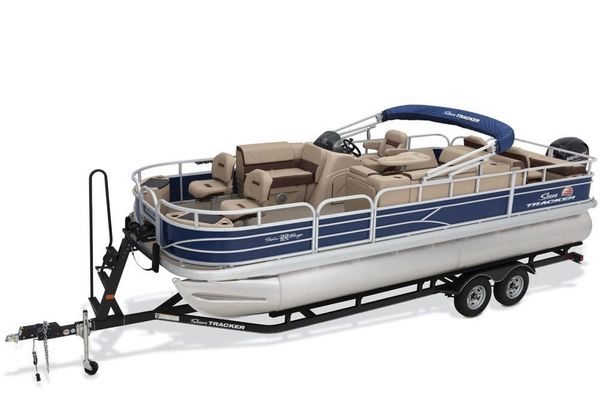

2018 Sun Tracker Fishin' Barge 22 DLX

Year 2018
Length 24'2 ft

Troll along the shore trying to catch that early morning bite with just a couple of friends. Invite out the whole crew for a friendly fishing contest. And fill the rest of the day with relaxing in comfort.
Whatever you’re angling for and with whomever you want to spend your time, the FISHIN’ BARGE® 22 DLX offers all the room (it has a 22’ 1” long deck!), all the features (two aerated livewells and rod storage galore) and comfort (check out that L-lounge!) you need to enjoy a perfect day on the water.
Talk about a great catch!

Specifications

Year built 2018
Category Power
Length Of Deck 22'1 ft
Beam 8'6 ft
Number of Passengers 11
Construction Aluminum
Engines 1
Fuel Tanks 1
Fuel Tank Cap. 32.1 gal
Dry Weight 1,820 lb

Engine 1 Specifications

Type: Outboard
Additional Specs
  • Length:24' 2"
  • Deck length: 22' 1"
  • Deck width: 102"
  • Max. recommended HP: 150 HP
  • Fuel capacity: 32.1 gal.
  • Pontoon log length: 22' 3"
  • Pontoon log diameter: 24"
  • Pontoon log material: 0.08 5052 marine alloy
  • Max. person capacity: 11 persons
  • Max. person weight: 1500 lbs.
  • Max. person, motor & gear weight: 2148 lbs.
  • Interior depth: 24"
  • Draft: 15"
  • Average weight: 1820 lbs.
  • Average package weight: 3653 lbs.
  • Package height: 9' 0"
  • Package width: 8' 6"
  • Towing length: 32' 0"
  • Storage length: 31' 0"
Standard Features

Comfort, Convenience & Peace of Mind

  • 10+LIFE™ warranty
  • NMMA® certified
  • 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
  • Exclusive QuickLift™ Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
  • Storage pockets in Bimini top
  • Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
  • Dual-latching gates w/finger guards & heavy-duty hinges that open inward
  • Gate stops/holders to keep gates secure in open position
  • Navigation lights
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn



Console

  • Deluxe soft-touch sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted, removable windscreen
  • Below-console cooler/storage space w/door & integrated map pouch
  • Convertible small items tray w/drink holders accepts optional flush-mount fishfinder
  • Built-in footrest w/non-skid pad
  • AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 2 directional speakers
  • NEW tachometer, trim meter/speedometer & fuel & hour gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box
  • 12V outlet



Construction & Exterior

  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/wave deflectors & internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • Rail-Lock™ system for mounting NEW optional snapless, trailerable mooring cover w/removable bow extension
  • Protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" walls (.23 cm) anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Rotomolded furniture backs & bases for resistance to the elements
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Rear boarding platform
  • Black or Blueberry fence color



Electrical

  • Easy-access marine-grade automotive-style fuse panel
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting
  • 12V outlet



Interior

  • Port bow rotomolded box w/livewell, ruler & drink holders
  • Starboard bow rotomolded box w/storage, ruler & drink holders
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow & aft fishing positions w/4 removable folding fishing chairs
  • NEW forward-console couch w/NEW Stow More™ system & lockable underseat storage
  • Aft L-lounge w/NEW Stow More™ system & underseat storage
  • NEW rear-facing tackle storage in aft L-lounge
  • Adjustable helm bucket seat w/swivel & folding arms
  • NEW pop-up changing room in lounge arm
  • Fore & aft vertical rod holders
  • Molded starboard aft lockable rod box for rods to 7' 6" (2.29 m)
  • Fishing friendly, easy-clean flooring throughout
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Movable drink holder/armrest
  • Removable table w/molded-in drink holders w/2 pedestal base locations
  • 31" (78.74 cm) port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails



Livewell Systems

  • Bow port rotomolded 12-gal. (45.42 L) aerated livewell w/shutoff valve & composite lid w/ruler
  • Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve



Performance

  • Performance enhancing extended motor pod
  • Factory-matched aluminum propeller
