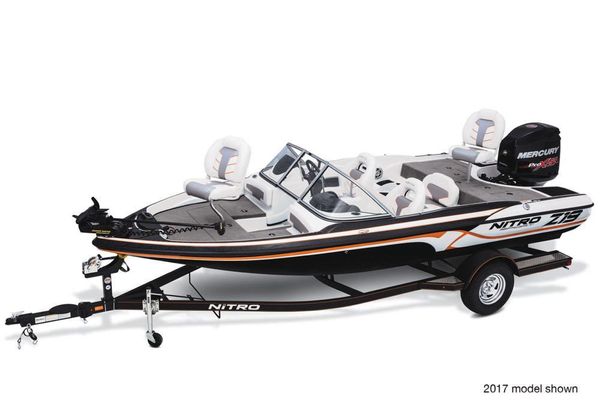

Nitro Z19 Sport - main image

2018 Nitro Z19 Sport

Year 2018
Length 19'5 ft

From sunup to sundown, you and your family are in for a treat with the NITRO® Z19 Sport. Whether you’re casting for bass or pulling the kids on a kneeboard, the Z19 Sport is the perfect hybrid of a performance fishing boat and a water sports champion. With a wraparound windshield, interior LED lighting, a 16-gallon livewell, removable ski pylon, Lowrance® HOOK-5x fishfinder, an aft swim platform and roomy storage throughout, this is the one boat that does it all.

Specifications

Year built 2018
Category Power
Length 19'5 ft
Beam 7'9 ft
Number of Passengers 5
Construction Fiberglass
Deadrise Angle 16 °
Min Draft 1'3 ft
Engines 1
Fuel Tanks 1
Fuel Tank Cap. 26 gal
Water Tank Cap. 0 gal
Water Heater Cap. 0 gal
Holding Tank Cap. 0 gal
Dry Weight 1,675 lb

Engine 1 Specifications

Type: Outboard
Additional Details
  • Length:19' 5"
  • Beam: 93'
  • Bottom width: 75'
  • Max. recommended HP: 150 HP
  • Fuel capacity: 26 gal.
  • Max. person capacity: 5 persons
  • Max. person weight: 700 lbs.
  • Max. weight capacity : 1500 lbs.
  • Interior depth: 24'
  • Transom height: 22'
  • Deadrise: 16 degrees
  • Draft: 15'
  • Approx. weight: 1675 lbs.
  • Approx. package weight: 3236 lbs.
  • Package width: 8' 3"
  • Storage length: 21' 0"
Standard Features

Comfort, Convenience & Peace of Mind

  • NMMA® certified
  • Flotation meets or exceeds NMMA® & U.S. Coast Guard Requirements
  • EPA-compliant fuel system
  • Removable tournament-style ski pylon
  • Port & starboard swim platforms w/integrated boarding ladder
  • 10 stainless steel drink holders
  • 4 pull-up cleats
  • Cockpit grab handles
  • Fire extinguisher
  • Horn
  • Paddle



Console

  • Flush-mounted Lowrance® HOOK-5x fishfinder w/surface temperature & down imaging
  • Tilt hydraulic steering
  • Radiused walk-thru, tempered-glass windshield
  • Custom-molded consoles
  • Port console w/storage tray & insulated cooler
  • AM/FM Bluetooth®-capable stereo w/USB & MP3 ports
  • Veethree® multi-function instrumentation gauges
  • Water-resistant switch panels



Construction & Exterior

  • Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners
  • Gelcoated stringer/liner system
  • Foam-filled hull for optimal buoyancy & safety
  • Full-width fiberglass-encapsulated composite transom



Electrical

  • 1,000 GPH (3,785 LPH) bilge pump
  • Port & starboard cockpit courtesy lighting
  • Interstate® starting battery
  • Interstate® Series 27 trolling battery
  • Heavy-duty 6-gauge trolling motor harness
  • Master power switch
  • Waterproof Deutsch gauge plugin connectors
  • Automotive-style labeled fuse panel w/cover
  • Water/abrasion-resistant connectors
  • Main & trolling motor harness circuit breaker protection



Interior

  • NEW Z-Core seating system w/Force Flex suspension & contoured, rotomolded frame (driver & passenger seats)
  • Aft bench seating w/2 convertible, removable fishing seats
  • 3 bow storage compartments
  • Port & starboard bow bolsters
  • Forward in-floor rod locker w/organizer
  • Midship in-floor wakeboard/ski storage
  • 2 aft storage compartments w/drop-in boxes
  • Full-width, lockable rod/ski storage in aft deck
  • 16-oz. (.45 kg) marine-grade cut-pile carpet w/edging
  • Lockable compression latches
  • Insulated aluminum lids w/welded corners
  • 44-qt. (41.6 L) insulated cooler below aft seat



Livewell Systems

  • 16-gal. (61 L) aerated, recirculated aft rotomolded livewell w/rounded corners, pump-out & timer
  • 500 GPH (1,893 LPH) aerator/fill pump
  • 750 GPH (2,839 LPH) recirculator/pump-out pump



Performance

  • Stainless steel propeller



Trailer

  • Custom-fit, single-axle NITRO® trailer w/powder-coat finish & GALVASHIELD® Impact corrosion & chip protection for improved durability
  • 14" (35.6 cm) chrome wheels w/radial tires
  • No Touch Vortex hub lubrication system w/6-yr. 100,000-mile limited warranty
  • Spare tire carrier (spare tire optional)
  • All-welded rectangular GALVASHIELD® frame
  • Space-saving swing-away tongue to reduce storage length
  • Heavy-duty winch w/nylon strap & bow safety strap
  • Outboard motor support to reduce hull & transom stress while towing
  • Carpeted bunks & fender boards to protect hull
  • Submersible LED lighting
  • Nylon tie-down straps (supplied w/boat package)
  • Safety cables



Trolling Motor

  • Minn Kota® PowerDrive™ 12V, 55-lb. (24.9 kg) thrust, 54" (1.37 m) shaft foot-control trolling motor w/Universal Sonar transducer
